Extended life method of airflow crushing

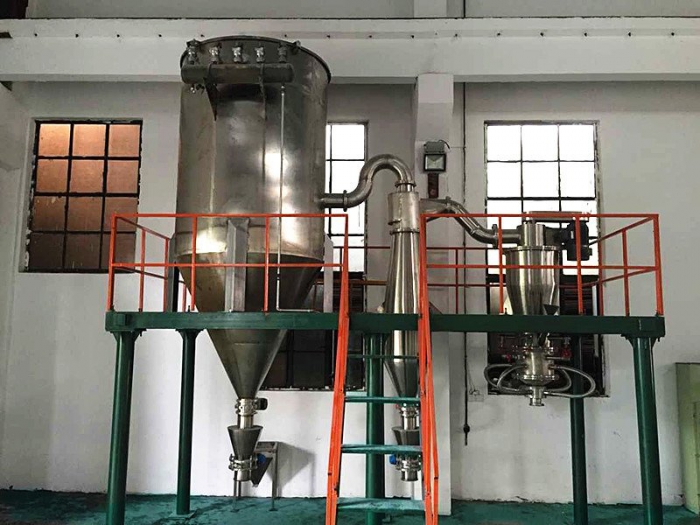

Today, I will talk about the life of the gas flow grinder. Ultrafine pulverizer is low, and all of the lifescas is used in high quality wear-resistant materials at home and abroad. It has long service life. A small amount of easy wear parts are made of special hard resistance, small size, light weight, easy to replace the accessories. After the airflow pulverizer is filtered, the pulverizing cavity is sprayed through the Raval nozzle, and the material is repeatedly collided, friction, shear and pulverized, and pulverized material in the intersection of the multi-shaped high-pressure airflow. Next, the rising airflow is moved to the hierarchical region, and the crude material is separated under the powerful centrifugal force generated by the high-speed rotation, the fine particles that meet the particle size requirements are collected by the grading wheel into the cyclone and the dust collector, and the crude particles drops to the pulverization. The district continues to smash. The ultrafine pulverizer is composed of silo, mechanical pulverizer, air blower, cyclone, vibrating screen, liquid nitrogen tank, etc., the deep-cooling pulverizer system is refined by liquid nitrogen as a cold source, and it is crushing at low temperatures by cooling. After the crushing state, enter the mechanical pulverizing cavity through the impeller high speed rotation, the material and the blade, the tooth disc, the material and the material are enrolled under the integrated effect of collision, shear, friction, etc., to achieve a crushing effect. The following is an explanation of the life extension method of the injection pulverizer.

In the daily use of the air flow crusher, pay attention to the use of the product, do not pay attention to excessive details, sometimes there are few users in the gas flow crusher knowledge, so some small problems will occur in the standardized operation, The airflow pulverizer does not play a maximum role during use. Next, the editor will introduce maintenance of your expected life.

1. In the production process, the temperature rise of the bearing should be checked frequently. When the temperature rise exceeds 50 ° C, the examination should be stopped, find out the cause, and troubleshoot.

2. When the new machine is running, the drive is easy to stretch. Note Adjust the appropriate tightness of the belt to ensure the life of the belt.

Three. The venerable parts should be checked regularly, replace it in time to ensure quality and production.

4. Blade and bushing should often check the wear situation. If the productivity is lowered, the particle size is thick and the wear will be replaced.

5, the host and the grading flow bearing adopts 2 special lubrication lipid lubrication, and the degree number 265-295.

6. The grease replacement period of the bearing is 2000 hours. The amount of the grease is filled as 1/2 (upper measurement) or 3/4 (lower measurement) in the bearing chamber. Don't fill overGrease, otherwise it will cause the bearing temperature to rise. Too high.

7. The exchange cycle of the helical feeder and ordinary calcium based grease is 4000 hours.

Welcome to the end of the airflow pulverizer life prolonged method.
