Airflow pulverizer application industry

Today, talk about the gas flow grinding machine application industry, hereby introduce the gas flow grinder application industry. The ultrafine pulverizer is composed of silo, mechanical pulverizer, air blower, cyclone, vibrating screen, liquid nitrogen tank, etc., the deep-cooling pulverizer system is refined by liquid nitrogen as a cold source, and it is crushing at low temperatures by cooling. After the crushing state, enter the mechanical pulverizing cavity through the impeller high speed rotation, the material and the blade, the tooth disc, the material and the material are enrolled under the integrated effect of collision, shear, friction, etc., to achieve a crushing effect. Ultrafine pulverizer is low, and all of the lifescas is used in high quality wear-resistant materials at home and abroad. It has long service life. A small amount of easy wear parts are made of special hard resistance, small size, light weight, easy to replace the accessories. After the airflow pulverizer is filtered, the pulverizing cavity is sprayed through the Raval nozzle, and the material is repeatedly collided, friction, shear and pulverized, and pulverized material in the intersection of the multi-shaped high-pressure airflow. Next, the rising airflow is moved to the hierarchical region, and the crude material is separated under the powerful centrifugal force generated by the high-speed rotation, the fine particles that meet the particle size requirements are collected by the grading wheel into the cyclone and the dust collector, and the crude particles drops to the pulverization. The district continues to smash.

The horizontal disc grinder is widely used in chemical, pesticides, light industry, food, medicine, non-metallic minerals, cosmetics and other industries, grinding of various dry powder materials.

Working principle of the horizontal disc grinder airflow grinding machine: The compressed air is evenly distributed around the broken chamber and is a certain angle with the radius of the broken chamber. The horizontal disc coal mill will convert the pressure into speed energy, produce a high-speed airflow, so that the powder particles are continuously uniformly entered into the crushing chamber through the feed injection, and the friction is collided with the surface of the broken chamber, and the purpose of ultrafine powder mill .

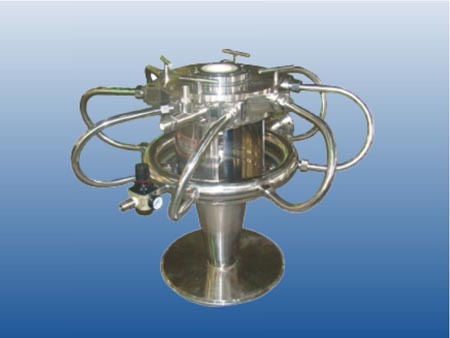

â—† Horizontal disc grinder airflow pulverizer Overview: Horizontal disc grinder: The compressed air is converted to speed energy through the nozzle, and the nozzle is evenly distributed around the pulverization chamber, and the radius of the pulverizer is a certain angle to generate high speed. airflow. By the feed injector, the powder material particles are continuously uniformly entered into the pulverizing chamber, collision, friction, and pulverized indoor cavity surface, thereby achieving ultrafine pulverization.

_ horizontal disc grinding gas flow pattern: horizontal disc grind is used for ultrafine pulverization of simplicity materials (3% water content). Since the interaction between the powders, high purity ultrafine particles can be obtained. With the corresponding lining, you can solve hard, stickyCrushing problem of wall material. The Joule-Tomson Cooling effect is generated by the compressed gas to be generated by nozzle, breaking at low temperatures. It is especially suitable for ultrafine pulverization of materials with good thermalness and low melting point. Continuous production and automatic operation can be achieved.

The present invention is widely used in chemical, pesticides, light industry, food, medicine, non-metallic ore, cosmetics and other fields, and all kinds of dry powder materials

Welcome to the airflow grinding application industry.
